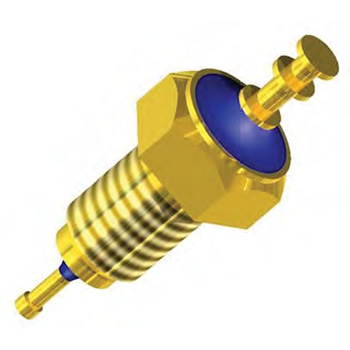

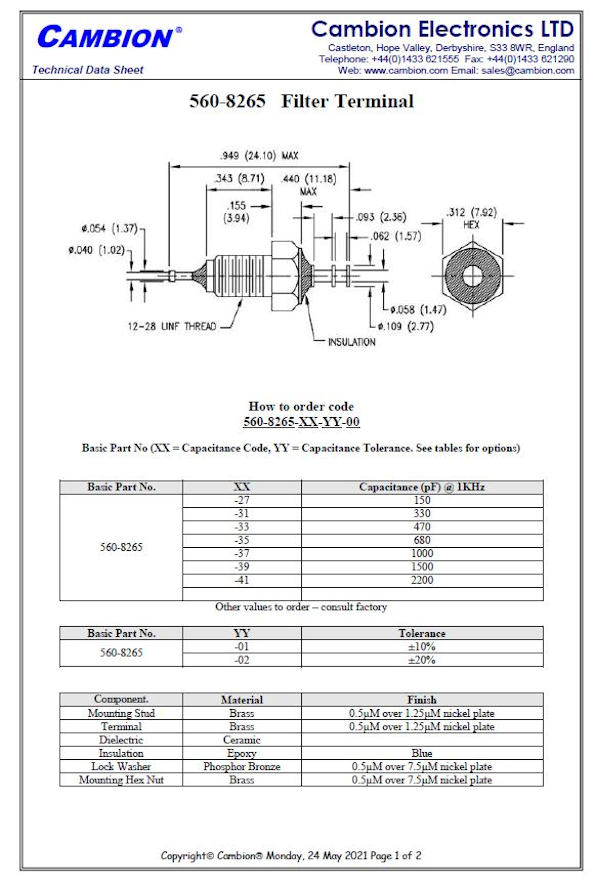

560-8265-XX-XX-00 : Filter Terminal
Download CAD Data
How to order code
560-8265-XX-XX-00
Check part availability
Material Code Table
ComponentMaterialFinish
Mounting Stud Brass 0.5µM over 1.25µM nickel plate
Terminal Brass 0.5µM over 1.25µM nickel plate
Dielectric Ceramic
Insulation Epoxy
Lock Washer Phosphor Bronze 0.5µM over 1.25µM nickel plate
Mounting Hex Nut Brass 0.5µM over 1.25µM nickel plate
Inductance Tolerance Coded Dash Numbers
-01±10%KTo Order
-02±20%MStandard
Brochure Download

Dielectric Strength: A potential of 250% of rated voltage may be applied for 5 seconds at 25°C

Terminal Strength: A force of 20 lbs. (9.1Kg) exerted in the direction of terminal exceeds the requirements of MIL-C-11015C

Insulation Resistance: >1GΩ @500V DC measured at 25°C

Working Voltage: 500V DC

Supplied with lock washer and hex nut unassembled

Suggested Mounting Torque: 4inch/lbs. (0.440Nm)

Devices are RoHS compliant

Temperature Coefficent: Maximum capacitance change from 25%deg;C. Value over the temperature range: -40°C to +85°C is +22% -55%
