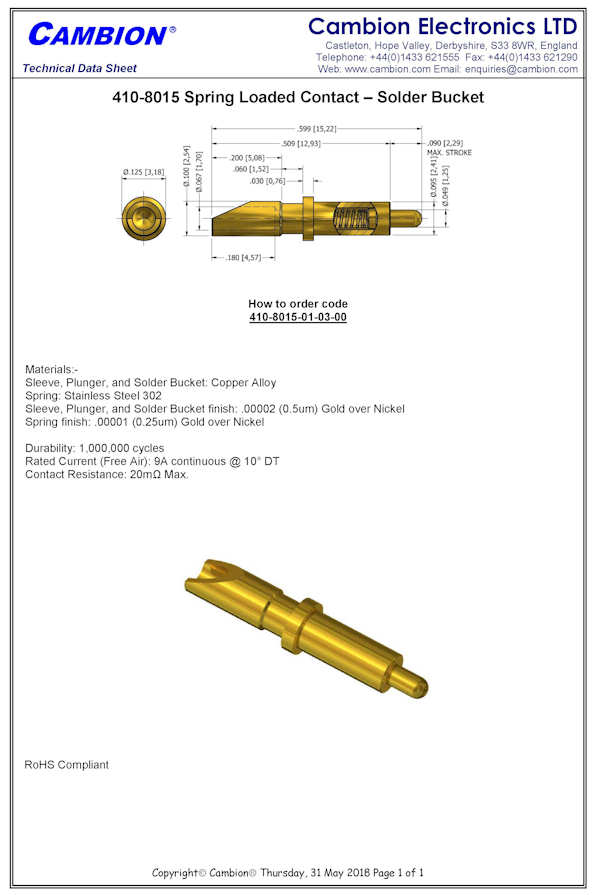

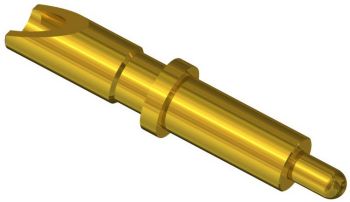

410-8015-01-03-00 : Spring Loaded Contact - Solder Bucket
| Material Code Table |
| Component | Material | Finish |
|
Sleeve, Plunger and Solder Bucket
|
Copper Alloy
|
.00002 (0.5um) Gold over Nickel
|
|
Spring
|
Steel 302
|
.00001 (0.25um) Gold over Nickel
|
|
| Finish Code Table |
| Dash No | Body Finish | Spring Finish | RoHS |
| -03 | Gold over Nickel | Gold over Nickel |  |
|
| Notes |
| Durability | 1,000,000 cycles |
| Rated Current (Free Air) | 9A continious @ 10° DT |
| Contact Resistance | 20mΩ Max. |
|
Other styles and configurations available, please consult factory.
| | |
