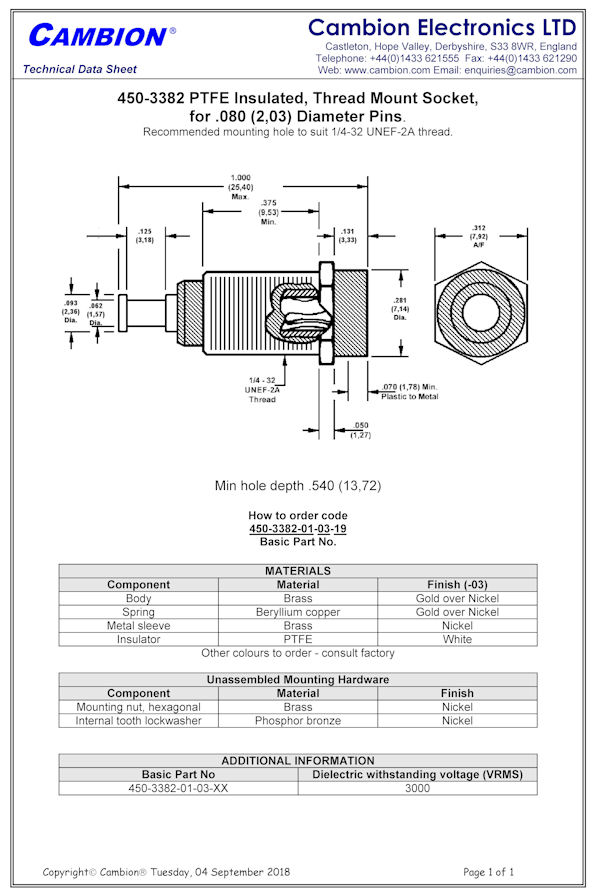

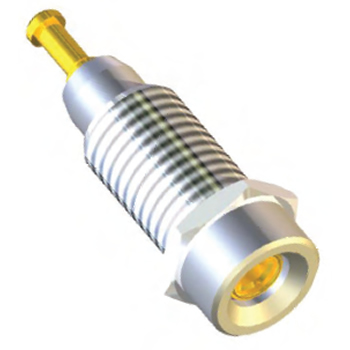

450-3382-01-03-XX : Single Pole Socket - Insulated - Thread Mount
Download CAD Data
How to order code
450-3382-01-03-XX
Check part availability
Material Code Table
ComponentMaterialRoHS
Insulator PTFE RoSH compliant
Metal Sleeve Brass RoSH compliant
Socket Body Brass RoSH compliant
Socket Spring Beryllium Copper
(Heat Treated)
RoSH compliant
Mounting Hex Nut Brass RoSH compliant
Internal Tooth Lockwasher Phosphor Bronze RoSH compliant
Finish Code Table
Dash NoSocket Body FinishSocket Spring FinishMetal Sleeve FinishMfg. Hex Nut FinishLockwasher FinishRoHS
-03Gold over NickelGold over NickelNickelNickelNickel
Insulation Colour Code Table
Dash NoColour
-10Black
-12Red (NOT RoHS compliant)
-16Blue
-19White
Brochure Download

Mounting Hardware supplied un-assembled.

Red PTFE is NOT RoHS compliant
